Passacavi a U

Your selection
  • remove selection
  • 13,8
  • 19,0
Your selection
  • remove selection
  • 13,8
  • 19,0
Your selection
  • remove selection
  • 10,5
  • 13,8
Your selection
  • remove selection
  • 7,0
  • 9,3
Your selection
  • remove selection
  • 12,0
  • 16,3
Your selection
  • remove selection
  • 1,5
  • 2,0

Productfilter

previous next
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Width
Height
Recess
wide
Recess
height
Clearance
Installation
depth
Material /
Color
Select
sample

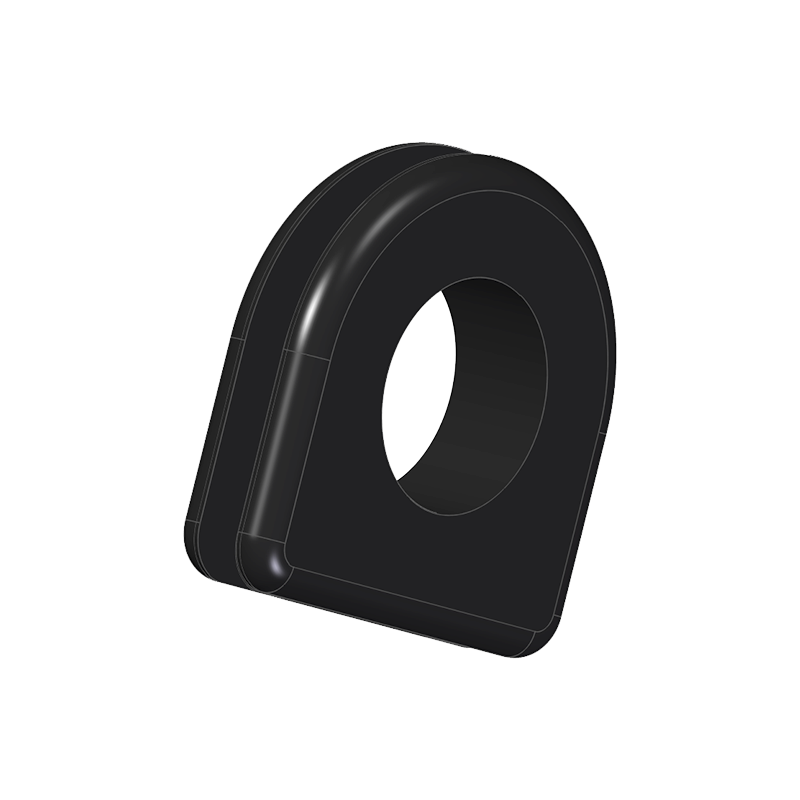

1059

13,8

13,8

10,5

7,0

12,0

1,5

2,6

EB

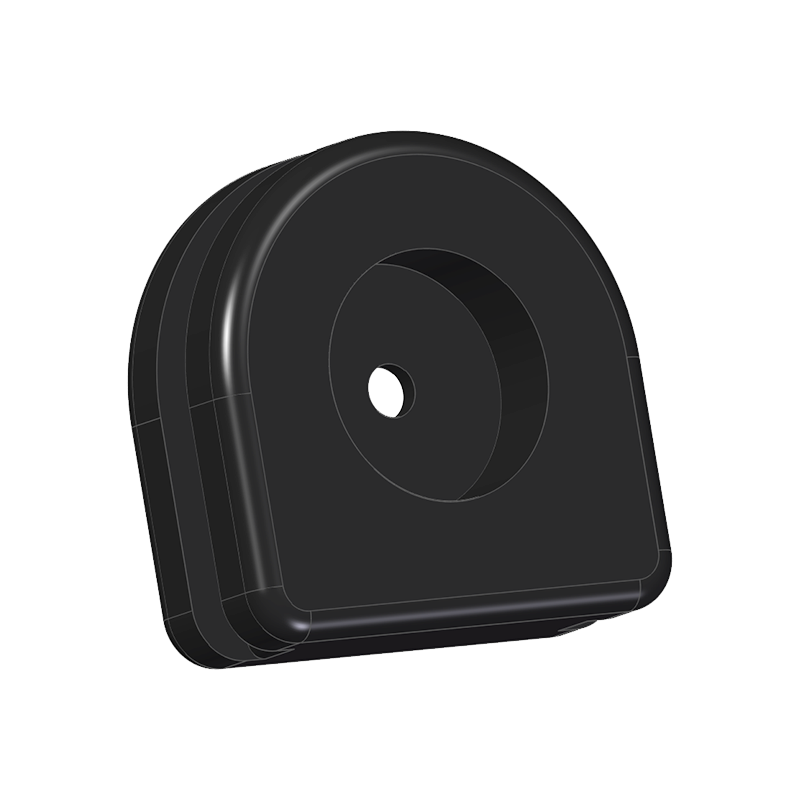

1048

13,8

13,8

10,5

7,0

12,0

1,5

2,6

EB

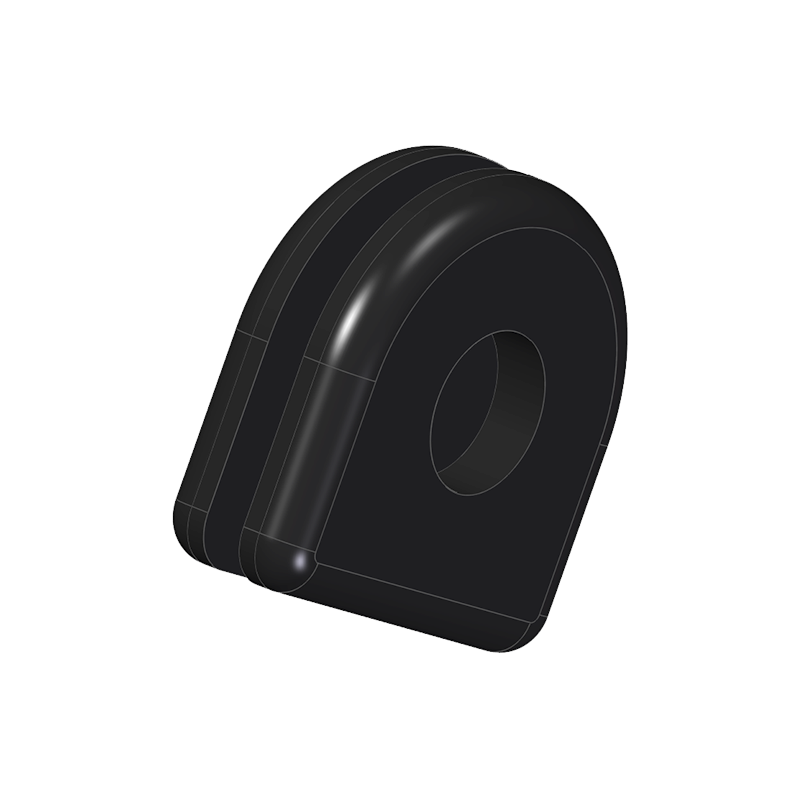

1033

19,0

19,0

13,8

9,3

16,3

2,0

4,5

EB

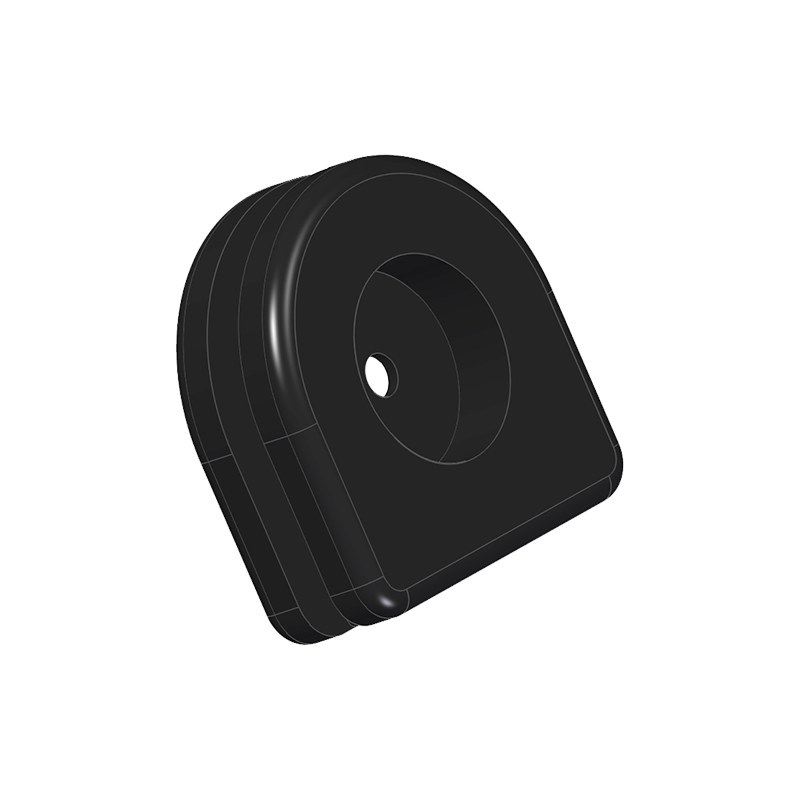

1049

19,0

19,0

13,8

9,3

16,3

2,0

4,5

EB

  • EB = EPDM, black
